RU12-Compact

> End forming with short cycle times


Product features

  • Compact design
  • Minimal collision contours due to horizontal clamp design
  • Suitable for bent and short workpieces
  • For better accessibility
  • Can be combined with feeding and handling systems
  • Standard tool holder RU Series (69.9 mm) or alternative customised tool holders
  • Possible upgrade for automation

Additional option electrical tube stop

  • Enables reproducible alignment of the tubes in the clamping jaws
  • Ensures consistent quality through high repeatability with manual or automatic part feed
  • Enables the automatic start of the forming process by means of a contact switch in the stop
  • Tool holder is not occupied by the stop
  • Necessary for automation

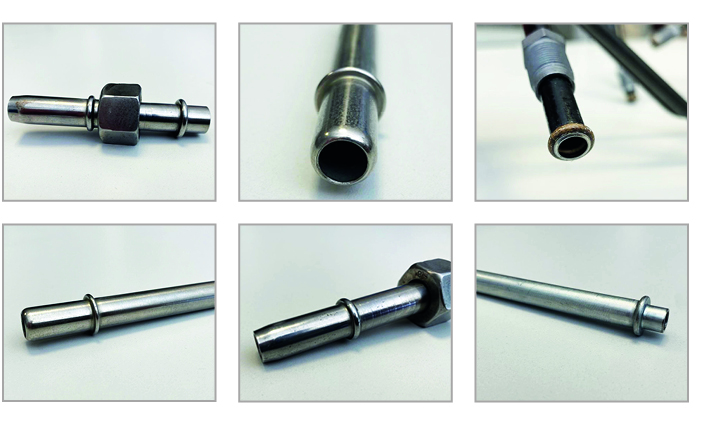

Solutions


Technical data

Machine type RU12-C
Tool forming force 120 kN
Tool stroke forming 100 mm
Clamping force (workpiece) 180 kN
Forming punches 1 or 2
Position accuracy ± 0,05 mm
Acceleration up to a = 4.800 mm/s²
Speed up to v = 240 mm/s
Dimensions LxWxH 1485 x 1130 x 1750 mm
Weight 1.495 kg
